Buy BINZEL 36KD UAE
High-Capacity Air-Cooled Performance
Technical Parameters
Electric current : 350A
Duty cycle : 60%
Wire diameter : 0.8–1.6mm
The Binzel 36KD is the ultimate air-cooled workhorse for medium-to-heavy industrial fabrication. Engineered for high-duty cycles and thicker materials, it is a staple in UAE structural steel plants, tank manufacturing, and heavy equipment repair facilities.

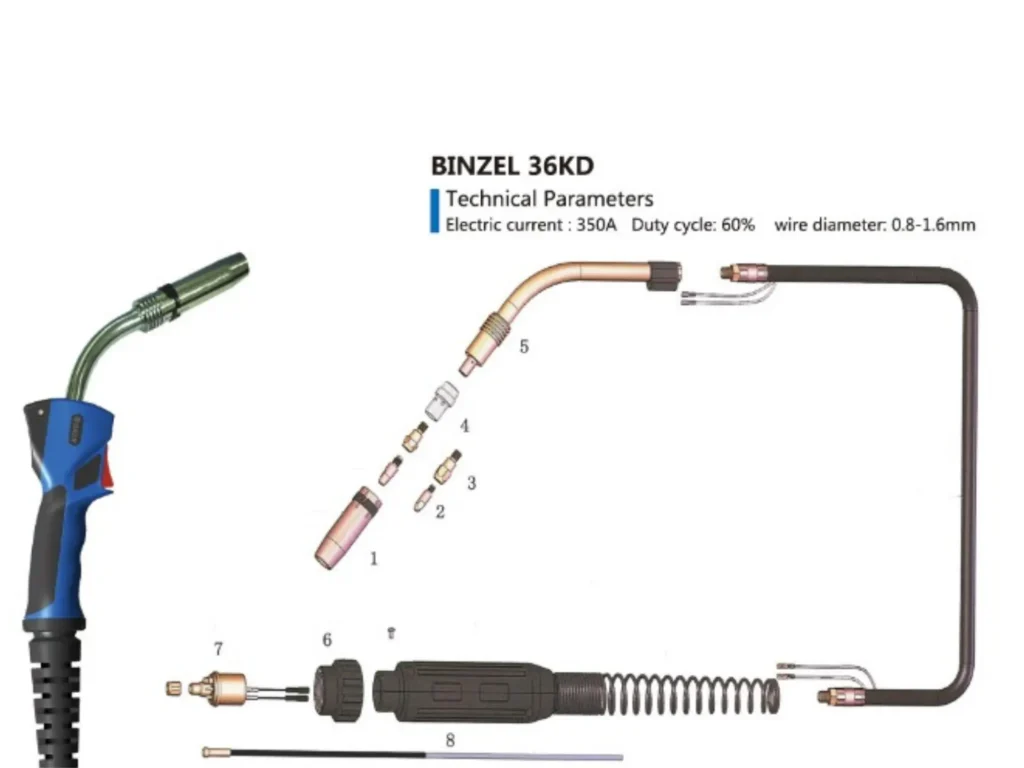

| Component | Part No. / Description | Key Specifications |
|---|---|---|
| Gas Nozzle | 145.0045 / 145.0122 | Cylindrical (NW19), Conical (NW16), or Tapered (NW12) |
| Contact Tip | 140.0313 / 140.0587 | M8*30 E-Cu or CuCrZr (0.8mm – 1.6mm) |
| Gas Diffuser | 014.0261 / 014.0023 | Available in White (Std), Black, or Ceramic (High-Heat) |
| Tip Holder | 142.0005 / 142.0020 | Heavy-duty M8 Contact Tip Holder |
| Swan Neck | 014.0006 | 36KD Swan Neck Assembly |
| Steel Liner | 124.0041 / 124.0043 | 0.8mm – 1.6mm compatibility; 3m to 5m lengths |
Why the 36KD is the Industrial Standard:
Superior Thermal Management: Gas-cooled technology rated for 350A at a 60% duty cycle, built to withstand the intense UAE climate.
Heavy-Duty Capacity: Seamlessly handles wire diameters from 0.8mm up to 1.6mm, providing the penetration needed for structural welds.
Rugged Durability: Features specialized ceramic gas diffusers for maximum heat resistance and extended life.
Rapid Fulfillment: Roshako maintains full inventory of 36KD consumables for quick dispatch to JAFZA, Mussafah, and Hamriyah Free Zones.
