Binzel 24KD Style: The Workhorse for UAE Industrial Projects
Technical Parameters
Electric current : 250A
Duty cycle : 60%
Wire diameter : 0.8–1.2mm
When your project demands more power without sacrificing precision, the Binzel 24KD is the ideal choice. Built for medium-to-heavy fabrication and structural steel projects, it provides the robust performance needed for the UAE’s industrial sectors.

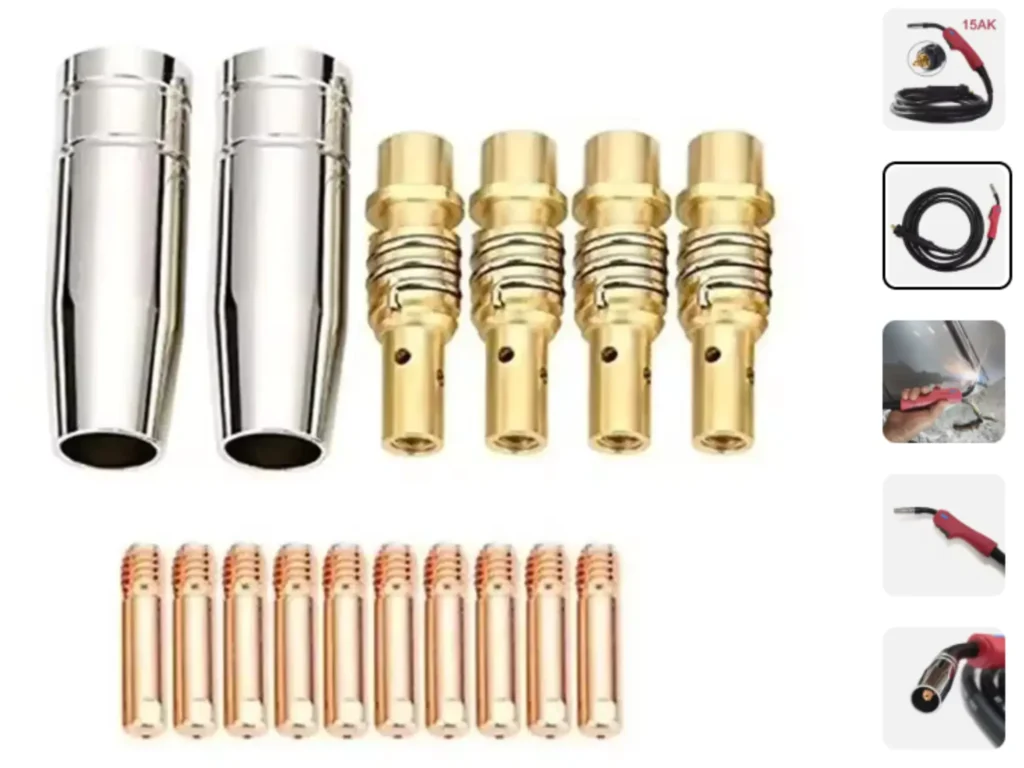

| Component | Part No. / Description | Key Specifications |
|---|---|---|
| Gas Nozzle | 145.0080 / 145.0128 | Conical (NW12.5) or Tapered (NW10) |
| Contact Tip | 140.0051 / 140.0242 | M6*28 E-Cu or CuCrZr (0.8mm – 1.2mm) |
| Gas Diffuser | 012.0017 / 012.0183 | Available in White (Standard) or Ceramic (Heat Resistant) |
| Swan Neck | 012.0001 | Heavy-duty 24KD Swan Neck |
| Steel Liner | 124.0026 / 124.0035 | 0.8mm – 1.2mm wire compatibility; 3m to 5m lengths |
High-Performance Features of the 24KD:
Increased Capacity: Rated for a powerful 250A output at a 60% duty cycle, ideal for thicker materials.
Industrial Durability: Features a more robust gas diffuser system (Ceramic or Composite) for superior gas coverage.
Broad Versatility: Supports wire diameters from 0.8mm to 1.2mm, making it highly adaptable for various workshop tasks.
UAE-Wide Delivery: Fast shipping of 24KD liners, nozzles, and tips to Abu Dhabi, Jebel Ali, and beyond.
